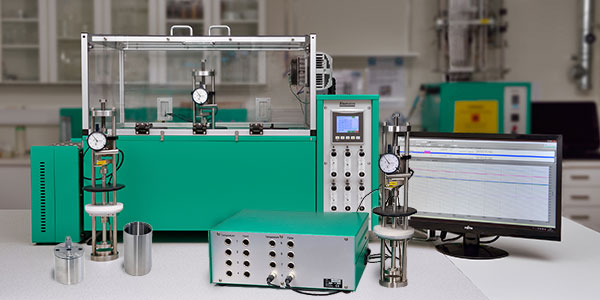

Accessories for a stress relaxation system

For a complete stress relaxation system there are other accessories also needed besides the cell ageing oven and the relaxation rigs – the amplifier box is one example.

Amplifier box, EB 02.14-x – Connects the rigs to a computer for acquisition of the force and temperature data. x = number of rigs that can be connected. There are amplifier boxes available for 2, 4, 6, 8 or 12 rigs per box.
Read more: Amplifier box for relaxation rigs, EB 02.14-x
Default load cell 600 N, EB 02.17 – Samples ø13 mm, for Shore A up to 80°.
Load cell 1 200 N, EB 02.18 – Samples ø13 mm, for Shore A up to 90°.
Load cell 2 000 N, EB 02.19 – For bigger samples, or harder samples from products.
Extension cord for load cells, EB 02.05.1 – 2.5 m, for other placement of amplifier box than directly behind the cell oven.
Extension cord for temperature sensor, EB 02.05.2 – 2.5 m, for other placement of amplifier box than directly behind the cell oven.
All-in-one Windows computer, ED 04 – For the Relaxation software, EC 05. Minimum i5 processor, 8 GB RAM, 20-inch monitor, keyboard, mouse. The voltage is 110–230 V and the frequency is 50/60 Hz.
Software for stress relaxation testing, EC 05 – The software evaluates results from relaxation tests according to ISO 3384 and ISO 6914.
This software must be combined with a license, EC 05-x. Purchase one license per rig you want to use for testing. The price per license is decreasing after a certain quantity, available in following steps: 8, 16 and 32.
Read more: Software Relaxation, EC 05
Uninterruptible power supply (UPS), ED 06 – To eliminate disturbances from power failures up to 30 minutes. Only available for 230 V, 50-60 Hz, 1000 VA double conversion. The computer and the amplifier box are recommended to be connected to a UPS power back up.
Container and pressure plate, EB 02.01 – For measurements in liquid for temperatures up to 200 °C (only for EB 02 rig).
Read more: Container for compression testing in liquids, EB 02.01
Click image to enlarge.

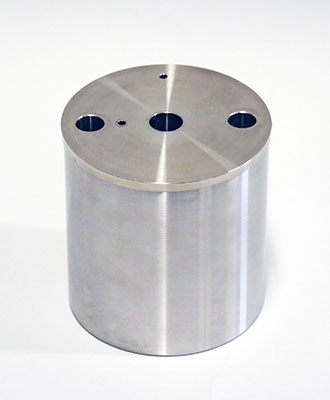

- EB 02-01 – Container and pressure plate for measurements in liquid for temperatures up to 200 °C (only for EB 02 rig).
Air tight container and pressure plate, EB 02.01P – For measurements in liquid for pressure up to 3 bar and temperatures up to 150 °C (only for EB 02 and EB 02AP rig). A pressure gauge (EB 02.01P6) for this container is also available as an option.
Read more: Air tight container for compression testing in liquids, EB 02.01P
Click image to enlarge.

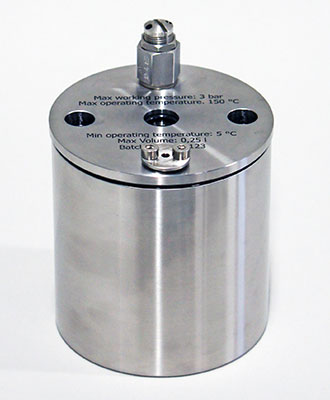

- EB 02-01P – Air tight container and pressure plate for measurements in liquid for pressure up to 3 Bar and temperatures up to 150 °C.
Container for testing in liquids in tension, EB 02.12 – For testing in liquids in tension up to 200 °C (only for use with EB 02TE rig).
Read more: Container for tension testing in liquids, EB 02.12
Click image to enlarge.

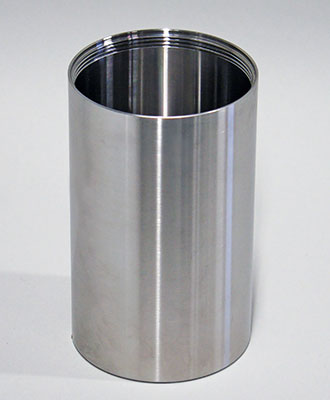

- EB 02-12 – Container for testing in liquids in tension up to 200 °C (only for use with EB 02TE rig).
Test piece holder for the relaxation rig, EB 02.26 – For ageing other samples simultaneously as the relaxation test. Click image to enlarge.
- EB 02.26 – Test piece holder for the relaxation rig for ageing other samples simultaneously as the relaxation test.
Stand for 4 relaxation rigs, EB 02.23 – For secure placement on the laboratory bench. It can also be used when performing relaxation tests in ambient temperature. Click image to enlarge.

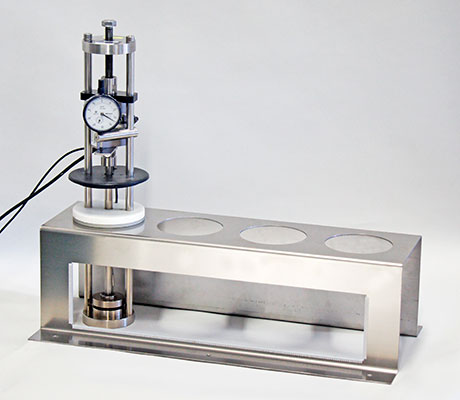

- EB 02.23 is a stand for 4 relaxation rigs for secure placement on the laboratory bench.
Fixture for bending test, EB 02.29 – With 3-point loading, the test fixture is developed from ISO 899-2 and enables a type of stress relaxation test for plastic materials.
