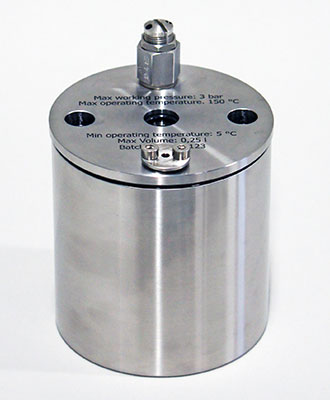

This air tight container can be used up to a pressure of 3 bar together with the EB 02 stress relaxation rig. This makes it possible to test samples in coolants under pressure.
When testing in volatile fuels evaporation can be eliminated, which reduces explosion and environmental risks. The container is equipped with a safety valve set to about 3 bar. Maximum temperature 150 °C.
Important specifications
- Maximum temperature: +5 to 150 °C
- Diameter: 90 mm
- Height: 95 + 25 mm
- Weight: 1.1 kg
- Material: Stainless steel
- Seals: FPM default or EPDM
Consumables
- EB 02.01P1 set of 6 O-rings, FPM for EB 02.01P
- EB 02.01P2 set of 6 O-rings, EPDM Peroxide cured for EB 02.01P
More information
Product brochure: Elastocon – Stress relaxation and creep systems.pdf
