Amplifier box for relaxation rigs, EB 02.14-x

Amplifier box for relaxation rigs, EB 02.14-x

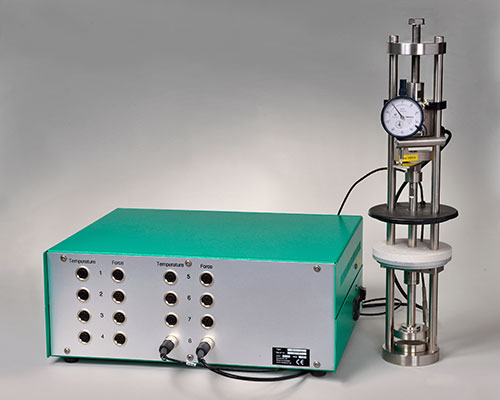

EB 02.14-x amplifier box connects the rigs to a computer for acquisition of the force and temperature data.

The amplifier box communicates via a network connection. This means that the amplifier can be directly connected to the network connector on a computer, or anywhere in a local ethernet network.

The box can also have up to 24 channels or connect 12 relaxation rigs. X = number of rigs that can be connected to the amplifier box, available in sizes: 2, 4, 6, 8 or 12 rigs per box.

Important specifications

Pt 100 input

  • Connection type: 3 wire
  • Temperature range: -200 to +850 °C
  • Resolution: 0,1 °C
  • Conversion time: 320 ms
  • Measuring error (25 °C): ± 0,2 % of full range
  • Bit width, bits: 2 × 16

Load cell input

  • Signal voltage, Ud, mV: -16 to +16
  • Signal voltage Uref, V: -10 to +10
  • Resolution: 16 bits
  • Conversion time: 250 ms
  • Measuring error, %: 0,1 of full range
  • Bit width: 16 bits

Communication

  • Transmission medium: Twisted pair S-UTP 100 ¤ cat5
  • Buscoupler connection: RJ45
  • Max length of fieldbus segment: 100 m between hubstation EB 02.14
  • Baud rate: 10 mbit/s
  • Protocols: ModBus/TCP, HTTP, bootp ModBus, UDP
