Cabinet oven, EB 12-II

Cabinet Oven, EB 12-II

The EB 12-II cabinet oven has high air speed with laminar flow from bottom to top, and a factory set throttle to give a fixed air exchange rate of 7 (default) or 14 changes per hour, which meets the requirements in ISO 188 method B.

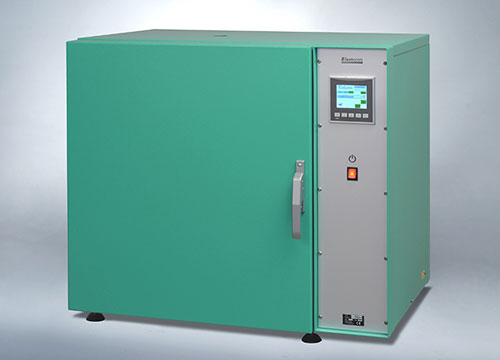

The EB 12-II is a cabinet oven for precision ageing of rubber and plastics under controlled conditions. The oven is supplied in one size, with 50 litres useful volume. The settings are done on the PLC colour touch screen.

Elastocon’s cabinet ageing ovens have excellent temperature stability and distribution achieved by using an inner chamber with a controlled air flow. The temperature accuracy is very important for heat ageing tests, as a 1 °C error in temperature corresponds to around 10 % error in test time.

Two temperature sensors are used, one for temperature control and one for measuring the temperature close to the samples. This sensor can also be connected to a logging software.

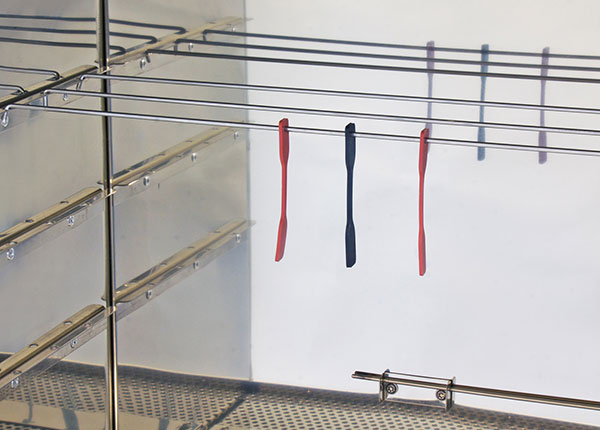

These ovens are ideal for ageing finished products and large test pieces which are unsuitable for cell ovens. Rods are supplied with this oven for accommodating most types of samples.
Click image to enlarge.

Note: For the best performance of the instrument, we recommend a placement in an environment with a stable temperature between +10 to +30 °C.

Standards

  • ISO 188 method B
  • ISO 4577
  • DIN 53508 P.6.2

Temperature range

+40 °C to +200 °C (EB 12-II)
+40 °C to +300 °C (EB 12-IIHT)

Useful volume

50 litres

Important specifications

  • High air speed with laminar flow from bottom to top (1 ± 0,5 m/s)
  • Fixed set air exchange rate of 7 (default) or 14 changes per hour (preset by manufacturer)
  • Temperature variation in time ± 0,25 °C
  • Temperature variation in space ± 0,5 %
  • Temperature indicator with sensor in the inner chamber (PLC)
  • Temperature controller with 0,1°C set point (PLC)
  • Adjustable upper and lower temperature limits with alarm (PLC)
  • Fixed over temperature fuse
  • Controlled from a micro PLC, with a colour touch screen
  • Test names can be given in the PLC
  • Improved insulation reduces energy consumption, environmental impact and cost
  • Cooling channels in the casing for low surface temperature
  • Indication of power failure (PLC)
  • Run-time meter (PLC)
  • Countdown timer for each cell (PLC)
  • Alarm history
  • Door with two point locking
  • Easy shelf installation and removal

Included accessories

  • 15 sample rods
  • Stylus pen for the instrument touch screen
  • Accredited calibration including certificate
  • Manual in English

Options for EB 12-II

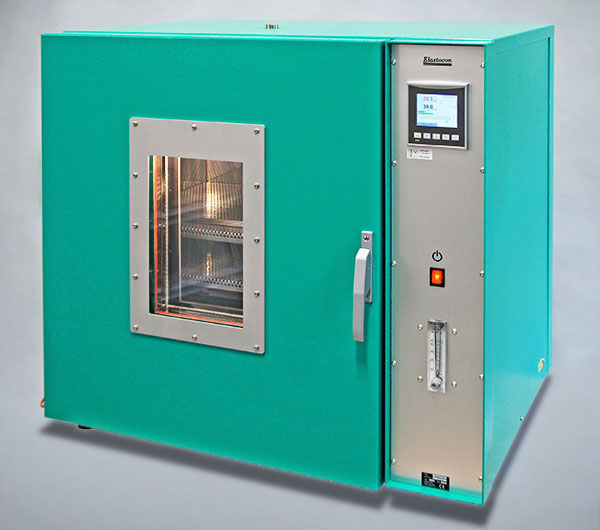

  • EB 04IIW – Four pane glass window and lamp illuminating the inner chamber
  • EB 04IIDS – Door sensor to turn off fan and heating when the door is opened
  • EB-P – Ramp function for temperature settings in the PLC
  • EC 11 – Monitor software
  • ED 04 – Computer (Windows)
  • ED 06 – Uninterruptible power supply (UPS), recommended for the computer to eliminate disturbances from power failures up to 30 minutes
  • Network cable

More information

Product brochure: Elastocon – Ageing ovens.pdf
