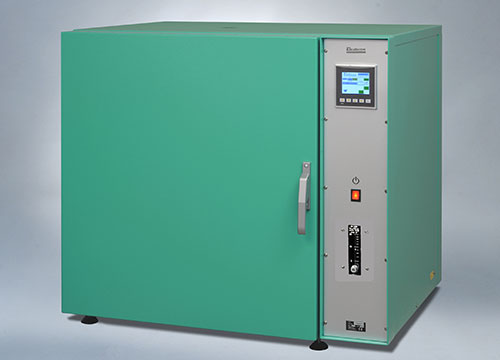

Cabinet oven, EB 04-II

The EB 04-II cabinet oven has low air speed and a flow meter that can be set between 3 to 20 changes per hour, which meets the requirements in ISO 188 method A.

EB 04-II is a cabinet ageing oven for precision ageing of rubber and plastics under controlled conditions. The oven is supplied in two sizes, with 60 or 120 litres useful volume. The settings are done on the PLC colour touch screen.

The air supply for EB 04-II requires external air. Elastocon offers a silent air compressor, EA 01, if compressed air is missing.

Elastocon’s cabinet ageing ovens have excellent temperature stability and distribution achieved by using an inner chamber with a controlled air flow. The temperature accuracy is very important for heat ageing tests, as a 1 °C error in temperature corresponds to around 10 % error in test time.

Two temperature sensors are used, one for temperature control and one for measuring the temperature close to the samples. This sensor can also be connected to a logging software.

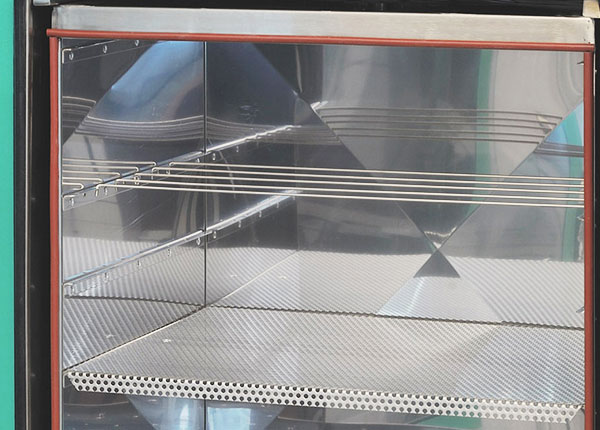

These ovens are ideal for ageing finished products and large test pieces which are unsuitable for cell ovens. Both shelves and rods are supplied with these ovens for accommodating most types of samples.
Click images to enlarge.

Note: For the best performance of the instrument, we recommend a placement in an environment with a stable temperature between +10 to +30 °C.

Standards

  • ISO 188 method A
  • IEC 60811-401
  • IEC 60216-4-1
  • Other equivalent standards

Temperature range

+40 °C to +200 °C (EB 04-II)
+40 °C to +300 °C (EB 04-IIHT)

Useful volume

60 or 120 litres

Important specifications

  • Low air speed (<0,002 m/s)
  • Adjustable air exchange rate via flow meter, 3 to 20 changes per hour
  • Temperature variation in time ± 0,25 °C
  • Temperature variation in space ± 0,5 %
  • Temperature indicator with sensor in the inner chamber (PLC)
  • Temperature controller with 0,1°C set point (PLC)
  • Adjustable upper and lower temperature limits with alarm (PLC)
  • Fixed over temperature fuse
  • Controlled from a micro PLC, with a colour touch screen
  • Test names can be given in the PLC
  • Alarm for low air pressure (PLC)
  • Improved insulation reduces energy consumption, environmental impact and cost
  • Cooling channels in the casing for low surface temperature
  • Indication of power failure (PLC)
  • Run-time meter (PLC)
  • Countdown timer for each cell (PLC)
  • Alarm history
  • Microfilter for the air which removes 99,99 % of all particles over 0,1 μm
  • Door with two point locking
  • Easy shelf installation and removal

Included accessories

  • 2 shelves, 10 sample rods (12 sample rods for 120 l model)
  • Stylus pen for the instrument touch screen
  • Accredited calibration including certificate
  • Manual in English

Options for EB 04-II

  • EB 04IIW – Four pane glass window and lamp illuminating the inner chamber
  • EB 04IIDS – Door sensor to turn off fan and heating when the door is opened
  • EB 04IIHP – Extra heating element for 120 l size only
  • EA 01 – Silent air compressor, 105 l/min – Read more about EA 01 here
  • EB 04II.01.120 – Extra shelves
  • EB 04-AP – Access port (only for 120 l)
  • EB-P – Ramp function for temperature settings in the PLC
  • EC 11 – Monitor software
  • ED 04 – Computer (Windows)
  • ED 06 – Uninterruptible power supply (UPS), recommended for the computer to eliminate disturbances from power failures up to 30 minutes
  • Network cable

More information

Product brochure: Elastocon – Ageing ovens.pdf
