The EV 01 thickness gauge is intended for rubber or plastic thickness measurement according to ISO 23529 and compression set measurement according to ISO 815.

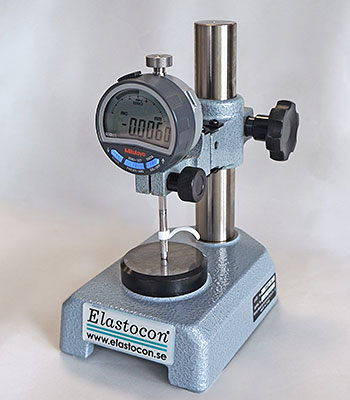

The following thickness gauges can be supplied
| Article number | Use | Resolution [mm] | Accuracy [mm] | Foot Pressure* [kPa] | Foot size* [mm in diameter] |
Range [mm] |
| EV 01B | Rubber and plastic samples | 0,001 | ±0,003 | 22 | 4,3 | 12 |
| EV 01F | Thin samples, such as condoms and plastic films | 0,001 | ±0,003 | 22 | 10 | 12 |
* Other diameters and foot pressures can be supplied on request.

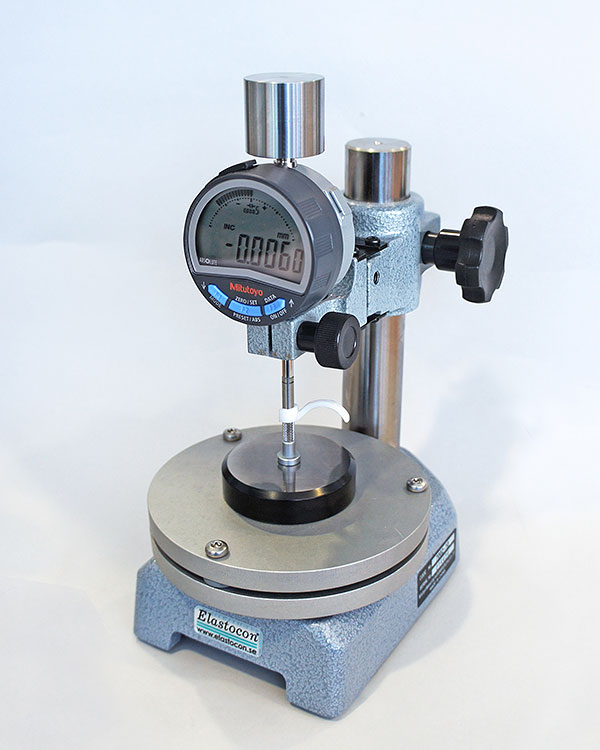

Thickness Gauge EV 01 F is a special version, with the possibility to set the parallelity between measuring foot and table.
Click image to enlarge.
Standards
Comply with ISO 23529, ISO 815 and equivalent standards
The thickness gauge includes
- Digital gauge, modified for correct measuring pressure for rubber or plastic testing
- 10 mm gauge block
- Spindle lifting handle
- Measuring foot
- Weight for thickness measurements
- Stand, of stable construction, with the possibility of fine adjustments of the height
Optional accessories
- EV 01.04 – Interface kit USB, for connection to EC 02, including cable and foot pedal
- EV 01.05 – Interface kit USB, for transfer to a spreadsheet software, including cable and foot pedal
- EC 02 – Software for Windows computers, for thickness measurements and compression set. The program collects the values from the connected instrument and the results can be printed per material as a trend graph together with statistics.
More information
Download product leaflet: Elastocon – Thickness gauges.pdf
