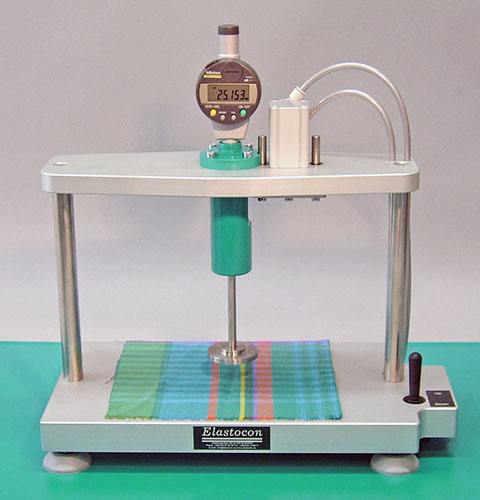

The EV 07 pneumatic thickness gauge is intended for textile thickness measurement according to ISO 5084.
The following thickness gauges can be supplied
| Article number | Use | Resolution [mm] | Accuracy [mm] | Foot Pressure* [kPa] | Foot size* [mm in diameter] |
Range [mm] |
| EV 07B | Pneumatic, for textile samples | 0,001 | ±0,005 | 1 | 50,5 | 25 |
* Other diameters and foot pressures can be supplied on request.
Standards
- ISO 5084
The thickness gauge includes
- Digital gauge, modified for correct measuring pressure for rubber or plastic testing
- 10 mm gauge block
- Spindle lifting handle
- Measuring foot
- Weight for thickness measurements
- Stand, of stable construction, with the possibility of fine adjustments of the height
Optional accessories
- EV 01.04 – Interface kit USB, for connection to EC 02, including cable and foot pedal
- EV 01.05 – Interface kit USB, for transfer to a spreadsheet software, including cable and foot pedal
- EC 02 – Software for Windows computers, for thickness measurements and compression set. The program collects the values from the connected instrument and the results can be printed per material as a trend graph together with statistics.
More information
Download product leaflet: Elastocon – Thickness gauges.pdf
