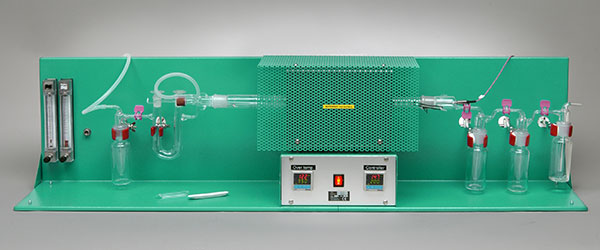

Tube oven, ES 14, for polymer and carbon black analysis.
The tube oven can be used for the following and similar test methods:
• ISO 247 Rubber - Determination of Ash
• ISO 1408 Rubber - Determination of carbon black content
• ASTM D297 Rubber - Determination of carbon black and ash content
• ASTM D1603 Plastics - Test method for carbon black in olefin plastics
Temperature range
+100 °C to +900 °C
Important specifications
- Temperature control, ± 10 °C
- Solid state relay for safe control
- Temperature controller with sensor in the tube
- Over temperature controller
- Flowmeters with needle valves, for setting the gas flow, 60-600 cm3/min and 0,2-2,0 l/min
Included accessories
- Temperature controller
- Over temperature thermostat
- Drying tube
- Flow meters
- Wash bottles
- 5 quartz glass boats
Optional accessories
ES 14.01-1 – Quartz glass boat 80 mm (1 to 9 pieces)
ES 14.01-10 – Quartz glass boat 80 mm (10 pieces or more)
ES 14.02 – Heating tube, spare glass tube including heating element
