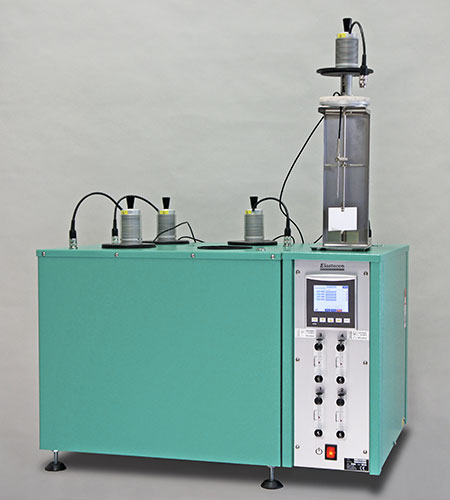

The EB 36 cell oven has a stirrer that stirs the air in the cells with about 60 rpm, which meets the standard AS/NZS 1660.2.3:1998. This cell oven is equipped with 4 cells, each with individual temperature. Each cell has individual control of the air exchange rate, and has room for 24 test pieces.
EB 36 is one of the latest generation of cell ageing ovens from Elastocon, for precision ageing of rubber and plastic materials under controlled conditions.
Two temperature sensors are used, one for temperature control and one for measuring the temperature close to the samples. This sensor can also be connected to a logging software.
Note: For the best performance of the instrument, we recommend a placement in an environment with a stable temperature between +10 to +30 °C.
Standards
The oven meets the standard AS/NZS 1660.2.3:1998.
Temperature range
+40 °C to +200 °C
Useful volume
4 × 2.4 liters
Important specifications for cell ageing ovens
- A stirrer stirs the air in the cells with about 60 rpm, which meets the standard AS/NZS 1660.2.3:1998
- Temperature variation in time ± 0,25 °C
- Temperature variation in space ± 0,5 %
- Temperature indicator with sensor in each cell (PLC)
- Temperature controller with 0,1°C set point (PLC)
- Adjustable upper and lower temperature limits with alarm (PLC)
- Controlled from a micro PLC, with a colour touch screen
- Test names can be given in the PLC
- Special design with controlled air exchange rate and low air speed
- Built in air pump
- Alarm for low air pressure (PLC)
- Improved insulation reduces energy consumption, environmental impact and cost
- Cooling channels in the casing for low surface temperature
- Indication of power failure (PLC)
- Run-time meter (PLC)
- Countdown timer for each cell (PLC)
- Alarm history
- Microfilter for the air which removes 99,99 % of all particles over 0,1 μm
Included accessories
- One sample holder per cell (with room for up to 24 test pieces)
- Necessary tools, including stylus pen for the instrument touch screen
- Accredited calibration including certificate
- Manual in English
Options for cell ageing ovens
- EB-P – Ramp function for temperature settings in the PLC
- EC 11 – Monitor software
- ED 04 – Computer (Windows)
- ED 06 – Uninterruptible power supply (UPS), recommended for the computer to eliminate disturbances from power failures up to 30 minutes
- Network cable
