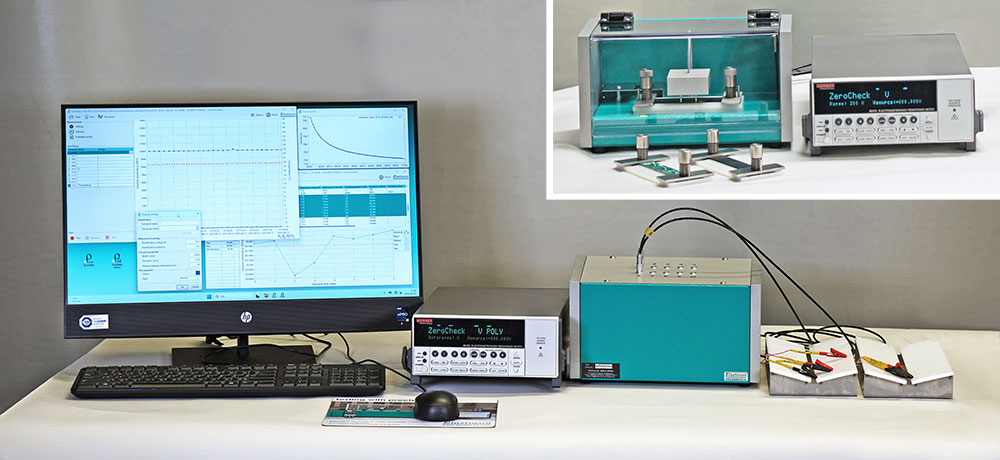

Elastocon’s series of electrical testers measure volume resistivity, surface resistivity, and resistance, enabling the evaluation of electrical properties across a wide range of polymer materials.
By combining world leading instrumentation for low-level signal measurements with Elastocon’s decades of expertise in developing instruments of the highest quality, our electrical testers ensure the accuracy and sensitivity needed for reliable and accurate resistivity measurements.
Key features
- Complete hardware–software solution for standardized resistivity measurements.
- Volume resistivity range: 0,01 to 1016 Ω·m (1 – 1018 Ω·cm)
- Surface resistivity range: 103 to 1017 Ω
- Test at voltages up to 1 000 V.

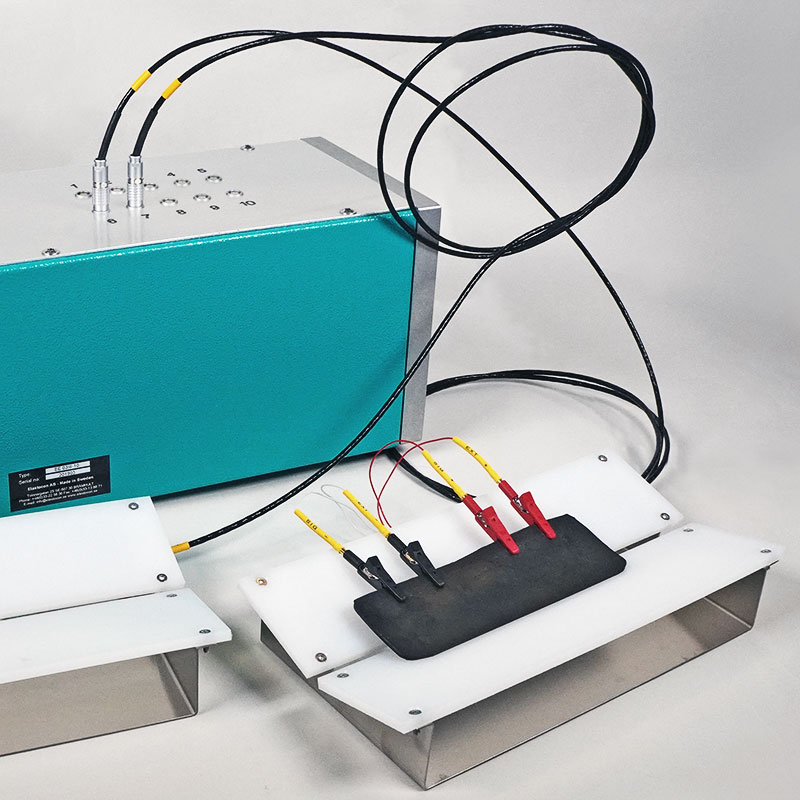

- Measure up to 10 samples in a single setup.
- Temperature monitoring using an external sensor.
- Automated measurement scheduling.
Complete resistivity measurement solution

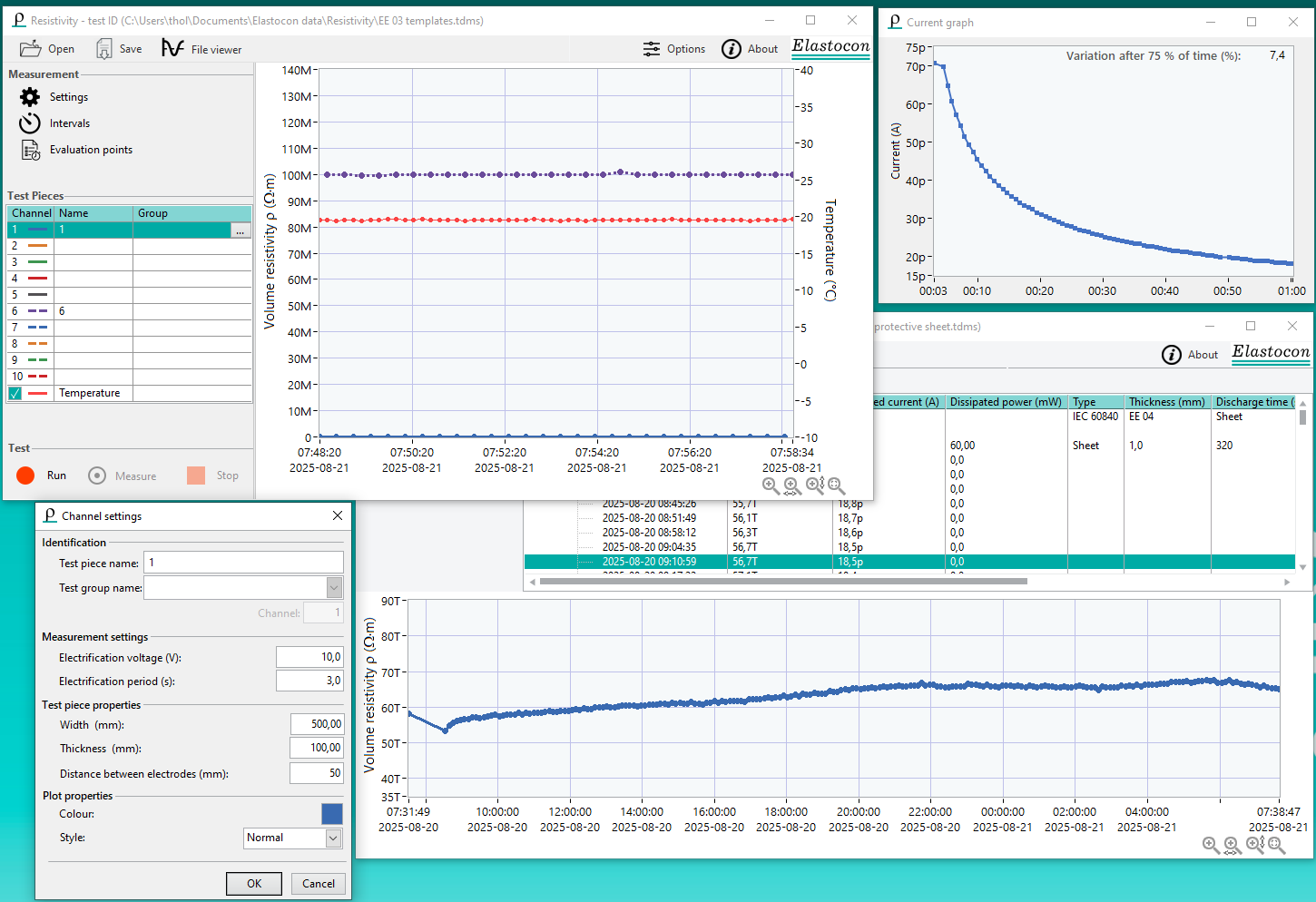

Perform resistivity measurements using test methods defined by industry standards ASTM, ISO and IEC. Analyze current–time plots to determine the proper electrification time for each material and review multiple readings to confirm stable and consistent results. Configure and automate measurements with the EC 14 Resistivity application. Loop or schedule tests to monitor resistivity changes over time, and export results for analysis.
Applications
Resistivity tests assess a material’s ability to resist or conduct electrical current, providing critical data for selecting materials in insulation, conductivity, and electrostatic control applications. These measurements help manufacturers ensure compliance with industry standards while improving product performance, reliability, and safety.
Resistivity testing is essential across fields such as rubber and plastic material development, high-voltage insulation, conductive polymers, and ESD protection.
