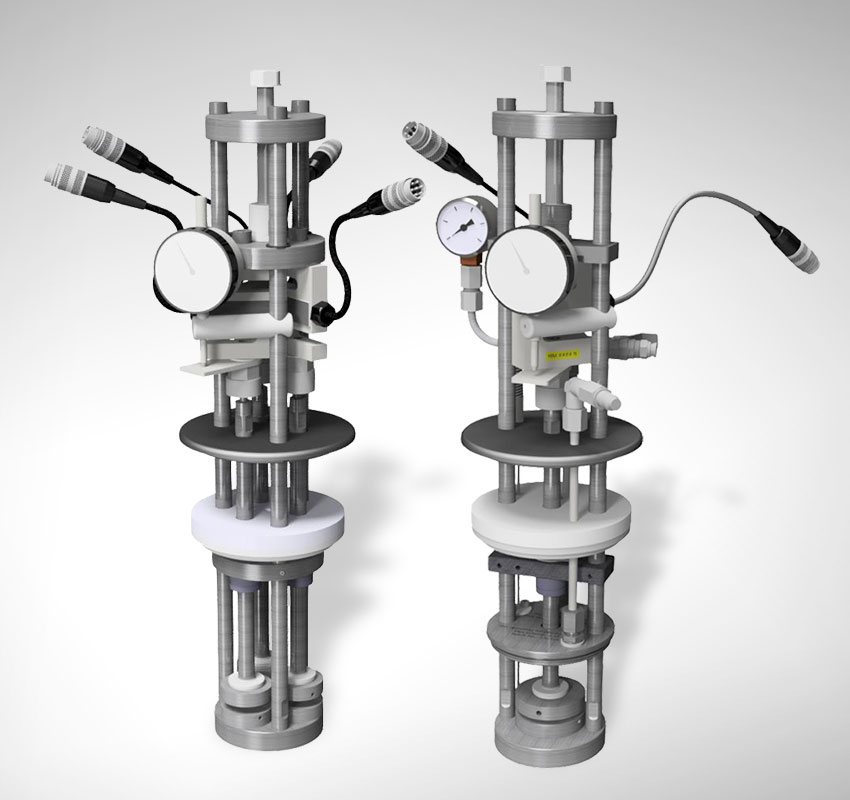

Elastocon now launches two new rigs for continuous stress relaxation measurements of rubber in compression – the EB 02TR triple rig and the EB 02N2 rig for testing in a nitrogen atmosphere.
Triple rig for compression testing, EB 02TR
The EB 02TR is our new triple rig for compression testing. It allows you to test up to 18 samples in one cell oven. This rig is highly space efficient and can handle temperatures from +5 °C to +200 °C according to ISO 3384, ASTM D6147 and SAE J2979.
Elastocon also offers a triple rig for tension testing according to ISO 6914 method A – EB 02TR, TE. Utilise both rigs for increased flexibility and number of samples slots in compatible cell ovens.
Rig for testing in a nitrogen atmosphere, EB 02N2
The EB 02N2 relaxation rig is designed to allow the flushing of the testing vessel with nitrogen gas. This allows for testing in a nitrogen atmosphere from +20 °C up to +150 °C according to ISO 3384-1. The rig is equipped with a pressure release valve, a pressure gauge and a refill valve.
The EB 02N2 rig is designed for use with air or nitrogen gas. For other gases please contact Elastocon.
Both EB 02TR and EB 02N2 rigs are compatible with EB 21, EB 22 ovens, and their configurations.
