Cabinet Oven, EB 26

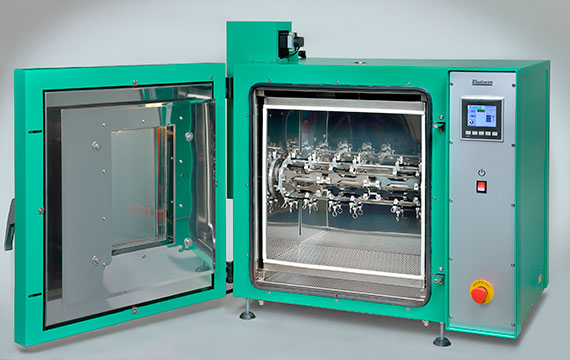

The EB 26 ageing cabinet has high air speed and a fixed air exchange rate of 7 or 14 changes per hour, which meets the requirements in ISO 188 method B. This oven also has a carousel for simple and fast mounting of the samples. The carousel – which rotates during ageing – has room for up to 36 samples.

EB 26 is a cabinet ageing oven for precision ageing of rubber and plastics under controlled conditions. It is supplied in one size, with 50 litres useful volume. The settings are done on the PLC colour touch screen.

In addition to the carousel the EB 26 cabinet oven is also equipped with:

  • a window in the door
  • lighting inside the chamber
  • a door sensor that turns off the fan, heating and carousel when the door opens.

Elastocon’s cabinet ageing ovens have excellent temperature stability and distribution achieved by using an inner chamber with a controlled air flow. The temperature accuracy is very important for heat ageing tests, as a 1 °C error in temperature corresponds to around 10 % error in test time.

Two temperature sensors are used, one for temperature control and one for measuring the temperature close to the samples. This sensor can also be connected to a logging software.

Note: For the best performance of the instrument, we recommend a placement in an environment with a stable temperature between +10 to +30 °C.

Standards

The oven performs well inside the apparatus requirements in ISO 188 method B and other equivalent standards.

Temperature range

+40 °C to +200 °C (EB 26)
+40 °C to +300 °C (EB 26HT)

Useful volume

50 litres

Important specifications

  • Carousel – which rotates during ageing – for simple and fast mounting of up to 36 samples
  • High air speed (1 ± 0,5 m/s)
  • Fixed set air exchange rate of 7 or 14 changes per hour
  • Temperature variation in time ± 0,25 °C
  • Temperature variation in space ± 0,5 %
  • Temperature indicator with sensor in the inner chamber (PLC)
  • Temperature controller with 0,1°C set point (PLC)
  • Adjustable upper and lower temperature limits with alarm (PLC)
  • Fixed over temperature fuse
  • Controlled from a micro PLC, with a colour touch screen
  • Test names can be given in the PLC
  • Improved insulation reduces energy consumption, environmental impact and cost
  • Cooling channels in the casing for low surface temperature
  • Indication of power failure (PLC)
  • Run-time meter (PLC)
  • Countdown timer for each cell (PLC)
  • Alarm history
  • Door with two point locking

Included accessories

  • Necessary tools (e.g. stylus pen for PLC touch screen)
  • Accredited calibration including certificate
  • Manual in English

Options for EB 26

  • EB-P – Ramp function for temperature settings in the PLC
  • EC 11 – Monitor Software
  • ED 04 – Computer (Windows)
  • ED 06 – Uninterruptible Power Supply (UPS), recommended for the computer to eliminate disturbances from power failures up to 30 minutes
  • Network cable
